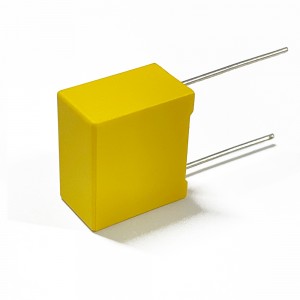

MKP61 275 X1 X2 Box Capacitor
| Product name | X2 Safety CapacitorPolypropylene Film Capacitor |
| Type | MPX (MKP) |
| Approval Standards | IEC 60384-14 |
| Features | Non-inductive structureHigh moisture-resistanceSelf-healing propertyFlame retardant type (compliance with UL94V-0)
Very small loss Excellent frequency and temperature characteristics High insulation resistance |
| Rated Voltage | 250/275/300/305/310VAC |
| Application | Widely used in the suppression of electromagnetic interference and power connection circuits, especially suitable for dangerous situations where the use of capacitors will not cause electric shock after failure. |
| Capacitance Range(uF) | 0.001uF~2.2uF |
| Operating Temperature (℃) | -40℃~105℃ |
| Customization | Accept customized content and provide sample services |
Certification
Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) factories are ISO-9000 and ISO-14000 certified. JEC X2, Y1, Y2 capacitors and varistors have passed these certifications:
CQC (China)
VDE (Germany)
CUL (America/Canada)
KC (South Korea)
ENEC (EU)
CB (International Electrotechnical Commission)
All of our capacitors are in line with the EU ROHS directives and REACH regulations.
FAQ
Q: What are the advantages of your 500Vac Y1 and Y2 capacitors?
A: Our 500Vac Y1 and Y2 capacitors can be made for larger capacitance.
Q: What’s the difference between monolithic capacitors and ceramic capacitors?
A: They have different structures. Monolithic capacitors are basically multi-layer ceramic capacitors (MLCC) whose rated voltage is relatively low: 25V or 50V.
Q: What is the safe pitch distance of Y capacitors?
A: The UL certificated safety pitch distance of Y1 is equal or greater than 8.0mm, and Y2 is equal or greater than 6.3mm.
Q: What do D and F represent in Y capacitor?
A: D: the diameter of capacitors. F: the pitch distance of the capacitor.
