Metallized Polypropylene Film Capacitor CBB21&CL21

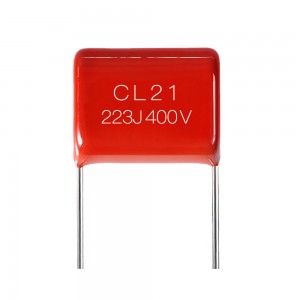

CL21 400V

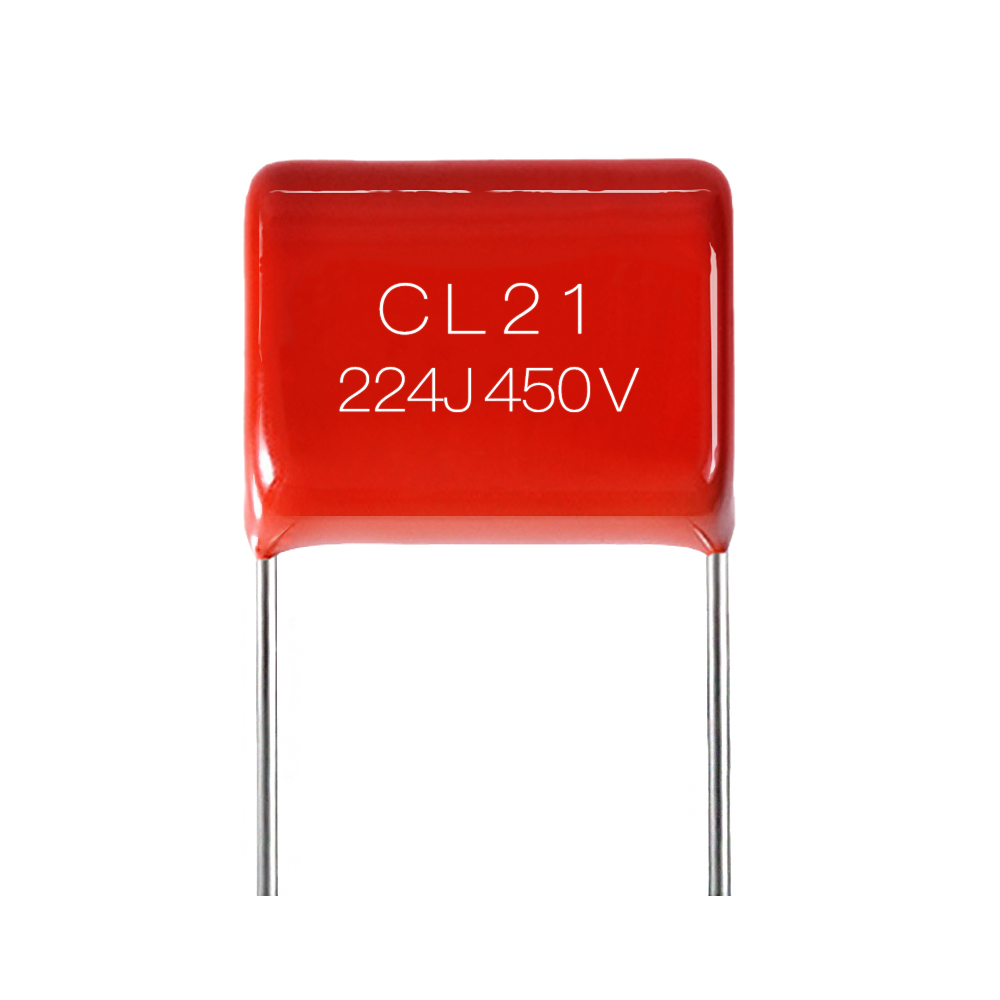

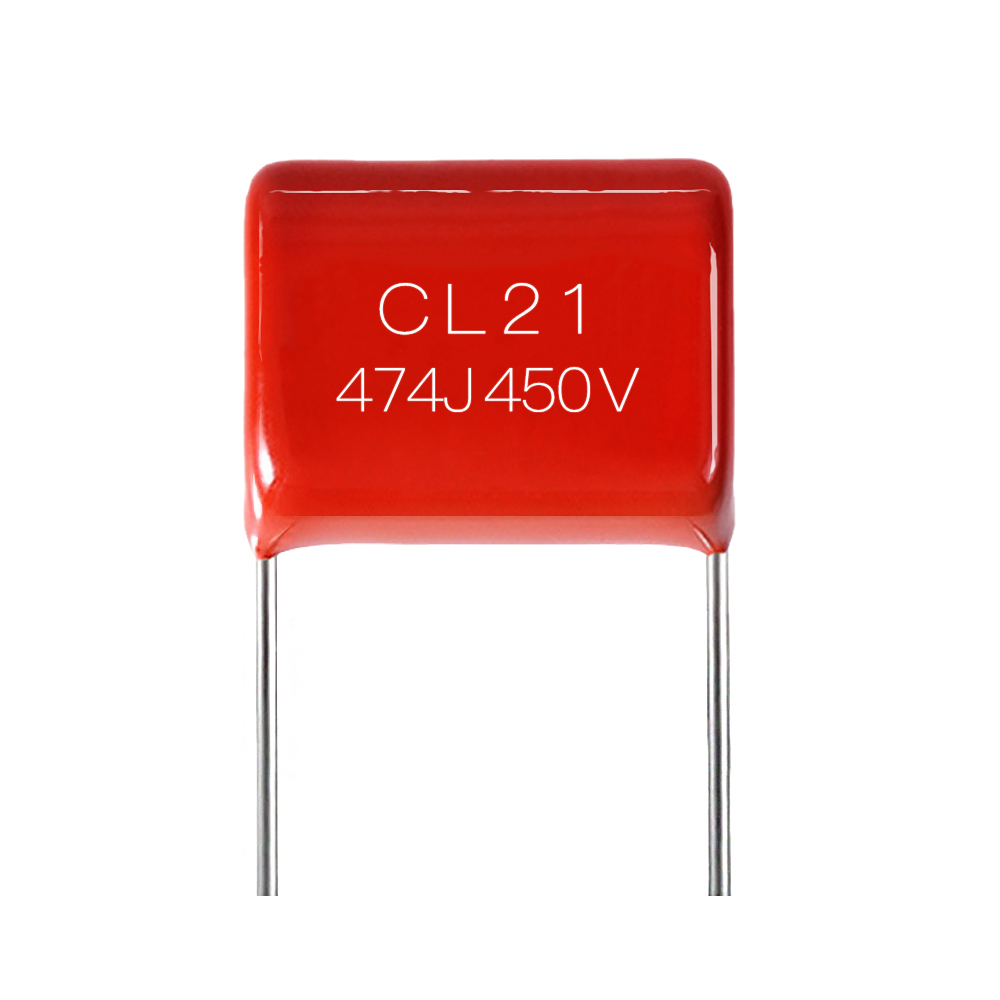

CL21 450V

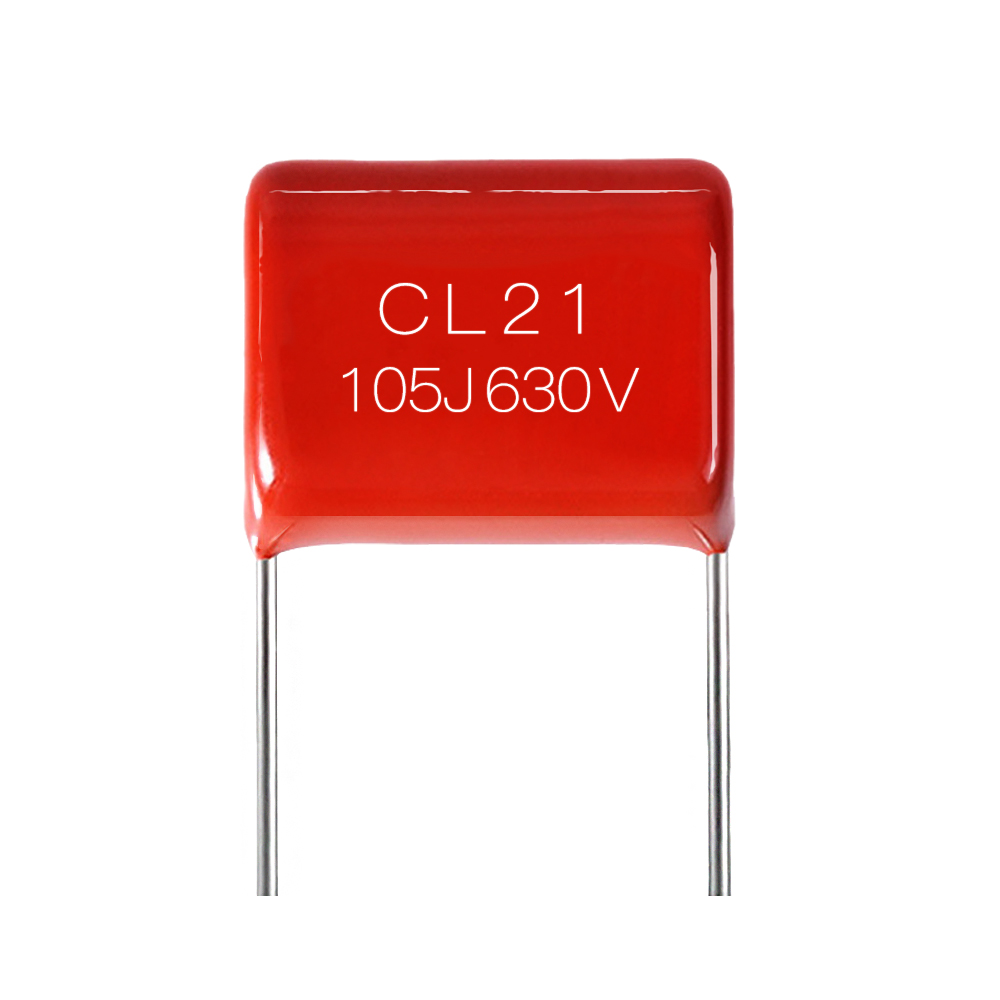

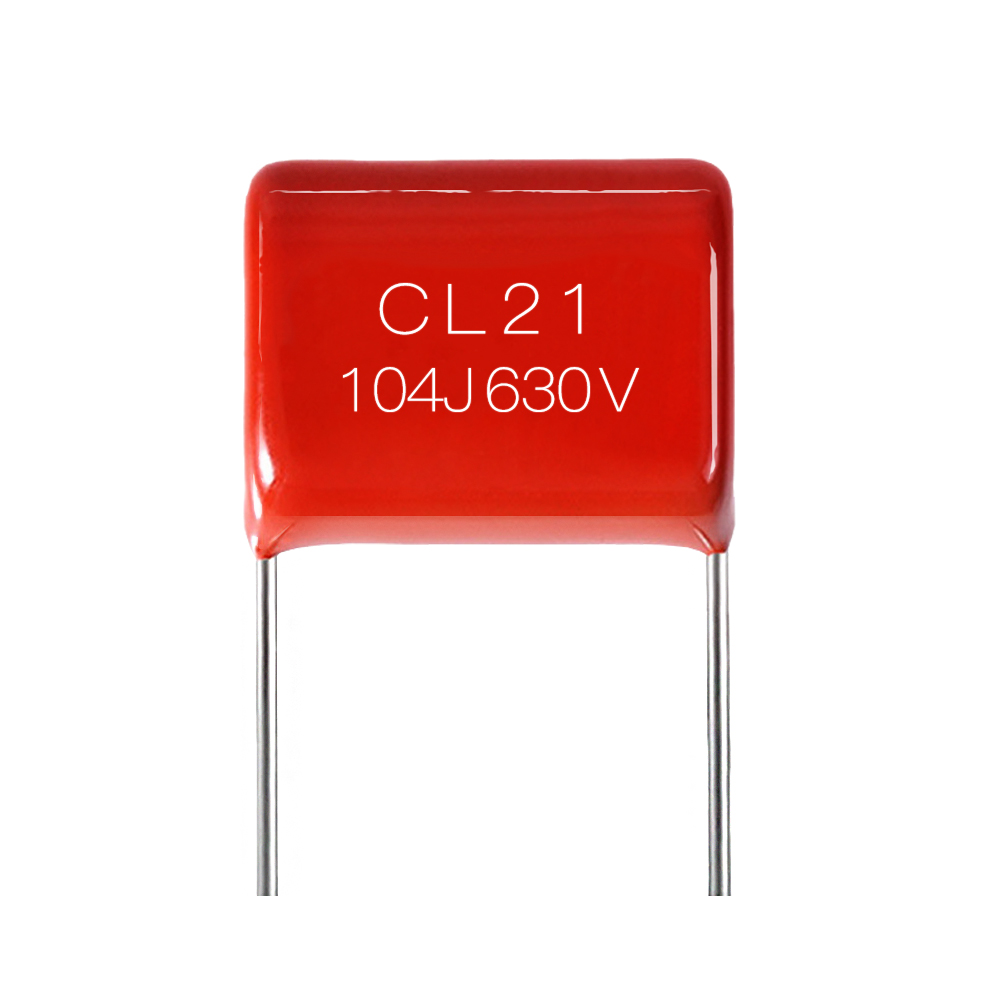

CL21 630V
|
Technical requirements reference Standard |
GB/T 14579 (IEC 60384-17) |
|
Climatic Category |
40/105/21 |
|
Operating Temperature |
-40℃~105℃（+85℃~+105℃: decreasing factor1.25% per℃ for UR） |
|
Rated Voltage |
100V, 250V, 400V, 630V, 1000V |
|
Capacitance Range |
0.001μF~3.3μF |
|
Capacitance Tolerance |
±5%(J), ±10%(K) |
|
Withstand Voltage |
1.5UR, 5sec |
|
Insulation Resistance(IR) |
Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1min For 60sec / 25℃ For 60sec / 25℃ |
|
Dissipation Factor (tgδ) |
0.1% Max, at 1KHz and 20℃ |
Application Scenario
Charger
LED lights
Kettle
Rice cooker
Induction cooker
Power supply
Sweeper
Washing machine
CL21 Film Capacitor Application
It is suitable for DC blocking, bypassing and coupling of DC and VHF level signals.
Mainly used in televisions, computer monitors, energy-saving lamps, ballasts, communication equipment, computer network equipment, electronic toys, etc.
Certifications
Certification
JEC factories are ISO-9000 and ISO-14000 certified. Our X2, Y1, Y2 capacitors and varistors are CQC (China), VDE (Germany), CUL (America/Canada), KC (South Korea), ENEC (EU) and CB (International Electrotechnical Commission) certified. All of our capacitors are in line with the EU ROHS directives and REACH regulations.
About Us
Our company has strong technical force and engineers with rich experience in ceramic capacitor production. Relying on our strong talents, we can assist customers in capacitor selection and provide complete technical information including inspection reports, test data, etc., and can provide capacitor failure analysis and other services.
Plastic bag is the minimum packing. The quantity can be 100, 200, 300, 500 or 1000PCS. The label of the RoHS includes the product name, specification, quantity, lot No, manufacture date etc.
One inner box has N PCS bags
Inner box size (L*W*H)=23*30*30cm
Marking for RoHS AND SVHC
1. How will film capacitors be damaged?
Due to reasons such as raw materials and manufacturing processes, the early damage of film capacitors is mostly due to manufacturing reasons. Because there may be impurities in the dielectric during the manufacturing process, mechanical damage, pinholes, low cleanliness, etc., it will cause over-voltage, over-current, and surrounding high and low temperatures. These problems will cause the thin film capacitor to weaken the dielectric or even cause it to break down. Sparks are usually generated during breakdown, which further expands the range, thus forming a multi-layer short circuit or even a short circuit of the entire component.
