High Voltage Ceramic Capacitor Assortment

Short Description:

JYH JSU (Dongguan Zhixu Electronics) has a broad product lineup that can respond to various needs and we’re able to provide very suitable solutions.


Product Detail

Product Tags

Rated Voltage(UR) 500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC
Capacitance Range 1pF to 100000pF
Operating Temperature -25℃ to +85℃
Temperature Characteristic NPO,SL,Y5P,Y5U,Y5V
Flame Retardant Epoxy UL94-V0



Application

application
High-voltage ceramic capacitors are wear-resistant and can withstand high voltage, so they are suitable for high-voltage bypass and coupling circuits.
The disc ceramic capacitor has low dielectric loss and is especially suitable for use in circuits such as television receivers and scanning.

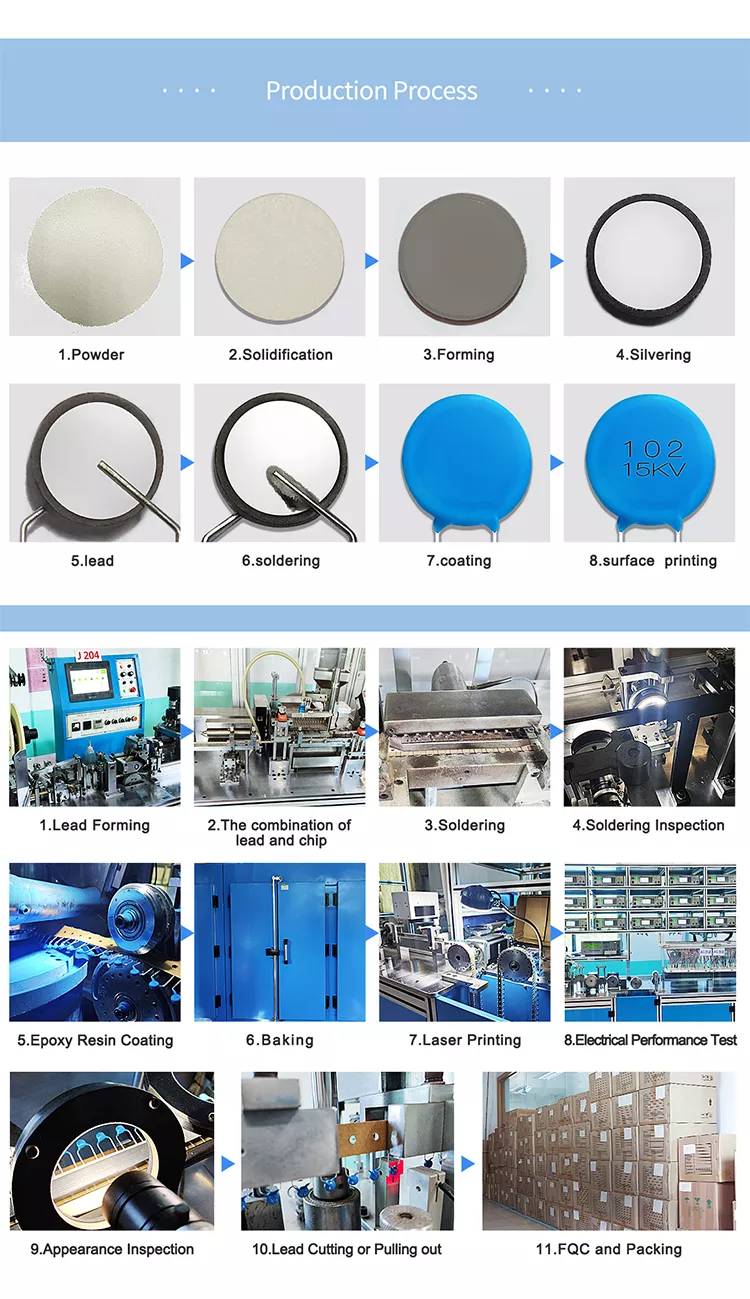

Production Process

High Voltage Ceramic Capacitor Production

Our Advantages

YH JSU (Dongguan Zhixu Electronics) is an expert in ceramic capacitor manufacturing because of its:

  • Advanced production equipment and testing equipment
  • Perfect technical research and development after-sales service system
  • The strong scientific research force of its own technical personnel



FAQ

Q: Does the capacitor have an upper voltage limit?
A: Yes, capacitors have withstand voltage values. The so-called withstand voltage value refers to the maximum value that the capacitor can withstand. For example, for a capacitor with a nominal withstand voltage of 100V, if it is used in a 10V circuit, the voltage that the capacitor can withstand is 10V, and if it is used in a 100V circuit, the voltage that this capacitor can withstand is 100V, but this capacitor can only withstand a maximum voltage of 100V, otherwise it will be damaged.

Q: What are the main factors that determine the capacitance of a capacitor?
A: The capacitance of a capacitor is mainly determined by the following three factors:
(1) The area of the electrode plates
(2) The distance between the two electrodes
(3) Material of the dielectric
